For dimensions click on link under "Size" for the motor in question to open a new window with dimensions. |
TN-NA Series 3 Phase 6pole (1200rpm) 208-230/460V-60H 200/400V-50H IEC metric motors. |
|||||||||||||
 |
||||||||||||||
| 100% Designed & Manufactured in Italy. | ||||||||||||||
| Other Volts, Frequency, Protection, Insulation, Mounting, and Options available. | ||||||||||||||
| Type | Size | HP/Kw | Pole | AMPS | COS | RPM @ 60Hz | Weight | LIST PRICE | WEB Price | |||||
| 208V | 230V | 460V | 208V | 230V | 460V | Kg | ||||||||
| TN | 56A | 0.08/0.06 | 6 | . | . | . | . | . | . | . |
3.0 |
$565.00 | today | |
| TN | 63A | 0.12/0.09 | 6 | . | . | . | . | . | . | . | 4.0 | $486.00 | inquire | |
| TN | 63B | 0.16/0.12 | 6 | . | . | . | . | . | . | . | 4.6 | $638.00 | today | |
| TN | 71A | 0.25/0.18 | 6 | . | . | . | . | . | . | . | 5.5 | $672.00 | today | |
|
TN |
71B | 0.33/0.25 | 6 | . | . | . | . | . | . | . | 6.5 | $738.00 | today | |
| TN | 80A | 0.50/0.37 | 6 | . | . | . | . | . | . | . | 8.5 | $864.00 | today | |
| TN | 80B | 0.75/0.55 | 6 | . | . | . | . | . | . | . | 10.5 | $946.00 | today | |
| TN | 90S | 1.0/0.75 | 6 | . | . | . | . | . | . | . | 12.5 | $1062.00 | today | |
| TN | 90L | 1.5/1.1 | 6 | . | . | . | . | . | . | . | 14 | $1434.00 | today | |
| TN | 100A | 2.0/1.5 | 6 | . | . | . | . | . | . | . | 24 | $1933.00 | today | |
| TN | 100B | 3.0/2.2 | 6 | . | . | . | . | . | . | . | 28 | $2544.00 | today | |
| TN | 112A | 3.0/2.2 | 6 | . | . | . | . | . | . | . | 34 | $2544.00 | today | |
| TN | 112B | 4.0/3.0 | 6 | . | . | . | . | . | . | . | 39 | $2900.00 | today | |
| Sizes 56B to 112B are available for immediate assembly & Shipment from Branson, Missouri | ||||||||||||||
| For Larger Sizes to Frame 200LB, or volume requirements inquire for quotation. | ||||||||||||||
| MOTORS IN GREEN SHADING ARE HIGH EFFICIENCY IE2 | ||||||||||||||
|
To specify and download a CAD file. Click Logo.
|

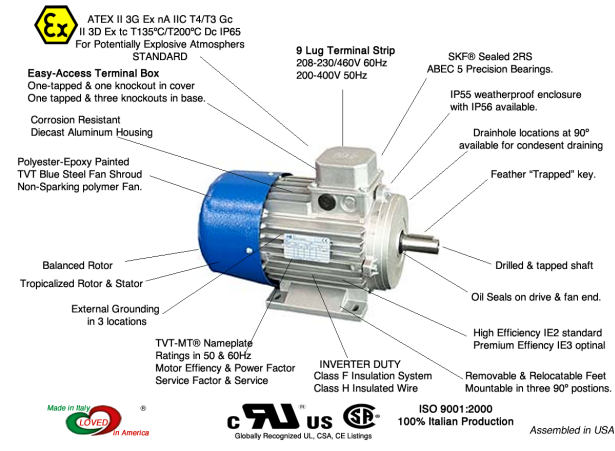

Our T Series 4 pole motors is available in all voltages for global markets, shown above are the standard 208-230/460V 60Hz motors for North American AC Current. If you are replacing motors on European machinery that has motors with nameplate ratings in 230/400V 50Hz, and your AC Current is 230V/60H 3phase, or 208V/60H 3ph improved life and performance can be obtained by purchasing the correct TVT T series 9-lead true 208-230 / 460V 60Hz dual rated 200/400V/50Hz IEC Metric motors. If you are unsure of your supply voltage, consult a qualified electrician. Listed above are our standard offering for AC motors, which are all Inverter rated, premium class F insulated, featuring Magnet metal sheets, Phase separators, are suitable for 50 or 60hz power, use double insulated Class H copper wire, feature premium NSK or SKF bearings. We carry Certificate UNI EN ISO 9001:2000, ATEX 94/9/CE Zone 2-22, and UL 1004, CSA C22.2 NR. 100-95. We can quickly design, quote, manufacture, and deliver motors and gearmotors specific to your design requirements and individual wishes. Be it ONE piece or MANY, contact your local TVT Distributor, Regional Representative, or TVT America's sales team for fast and friendly support. |
|||||||||||||
| Documentation TN Series | ||
|
Click Catalog Selection for PDF |
Technical Specifications |
146Kb |
| Dimensions |
97Kb |
|
|
SERVICE LINKS |
Complete Electric Motors Catalog |
1.7Mb |
| Design-to-Suit Brochure |
484Kb |
|
 |
||
