| TN90S Series dimensions B3, B5, and B14. | ||
|
|
||

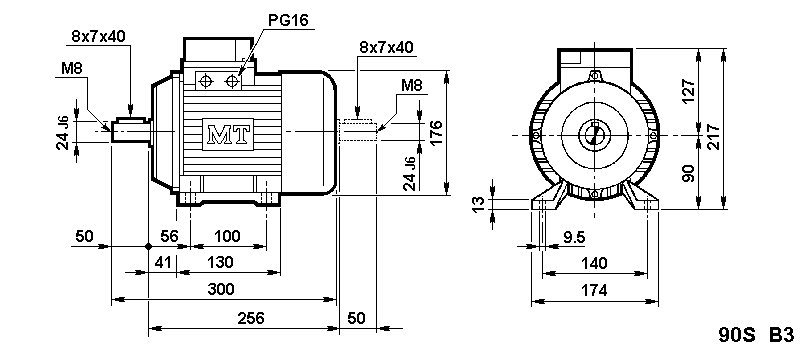

| Dimensions for TN90S..B3 Frame motors from MT Electric S.r.l. | ||
 |
||

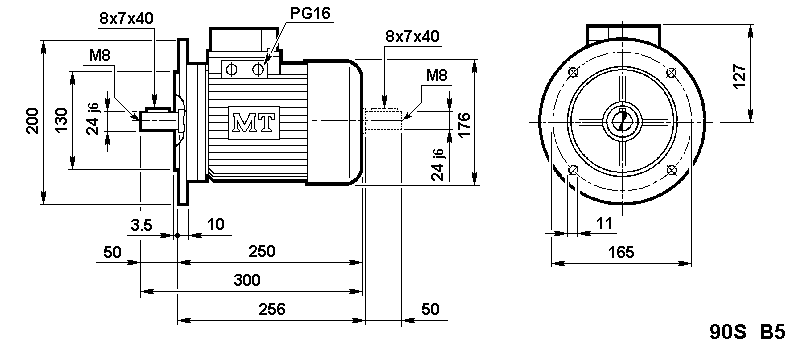

| Dimensions for TN90S..B5 Frame motors from MT Electric S.r.l. | ||
 |
||

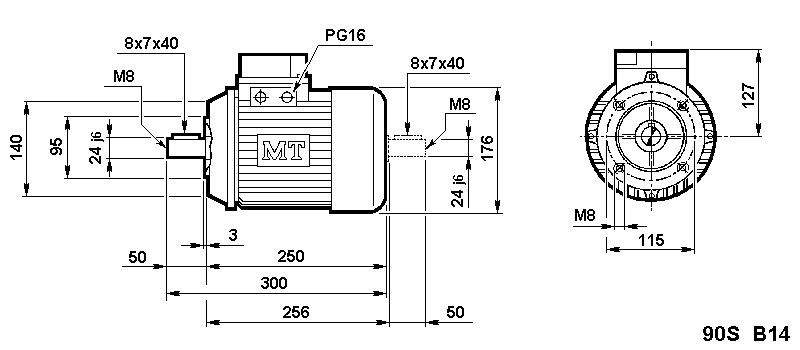

| Dimensions for TN90S..B14 Frame motors from MT Electric S.r.l. | ||
 |
