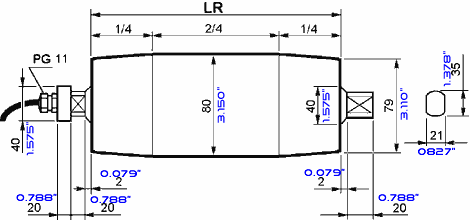

RM80 Drum Motor (3.150") |
|||||||||||||
| V = Belt Speed ft/minute | |||||||||||||||
| M = Drummotor axis torque in-lbs | |||||||||||||||
| F = Belt Pull in Lbs | |||||||||||||||
| L = Minimum Face width | |||||||||||||||
| <dimensions in millimeters & Inch | |||||||||||||||
| Hp | Poles | V | M | F | Lmin | Weight of Drum Motor in Lbs (LR inch) | |||||||||
| Ft/Min | In-lbs | lbs | inches | 12.28" | 14.25" | 16.22" | 18.19" | 20.16" | 22.13" | 24.10" | 26.06" | 28.03" | 30" | ||
| Three Phase Motors | |||||||||||||||
| 0.07 | 2 | 0.63 | 103 | 63 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 |
| 2.28 | 28 | 18 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 | ||
| 4 | 0.35 | 183 | 116 | 12.874 | 9.3 | 10.4 | 10.8 | 11.5 | 12.1 | 12.8 | 12.1 | 14.3 | 15.0 | 17.0 | |
| 0.75 | 87 | 55 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 | ||
| Single Phase Motors | |||||||||||||||
| 0.07 | 2 | 0.63 | 103 | 65 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 |
| 2.28 | 28 | 18 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 | ||
| 4 | 0.35 | 183 | 116 | 12.874 | 9.3 | 10.4 | 10.8 | 11.5 | 12.1 | 12.8 | 12.1 | 14.3 | 15.0 | 17.0 | |
| 0.75 | 87 | 55 | 12.283 | 8.6 | 9.3 | 10.1 | 10.8 | 11.5 | 12.1 | 11.5 | 13.7 | 14.3 | 15.2 | ||
