4.46" DIAMETER
																	RM113 Drum Motor
																	V = Belt Speed ft/minute
																	M = Drummotor axis torque in-lbs
																	F = Belt Pull in Lbs
																	L = Minimum Face width

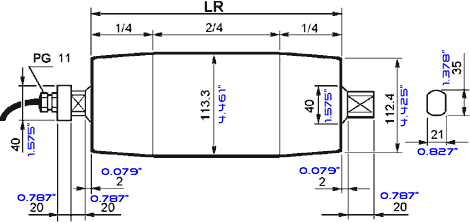

																	<dimensions in millimeters & inch
Hp	Poles	V	M	F	Lmin	Weight of Drum Motor in Lbs (LR inch)
		Ft/min	In-lbs	lbs	Inch	12.28"	14.25	16.22	18.19	20.16	22.13	24.09	26.06	28.03	30	31.91	33.94	35.91	37.87	39.84	42.60	43.78
Three Phase Motors
0.15	4	22.62	512	230	11.42	18.1	19.4	20.7	21.4	22.9	24.3	26.0	26.9	28.7	31.8	32.0	34.6	35.9	37.7	39.0	40.6	42.6
		30.71	393	177	11.42
		37.80	341	153	11.42
		54.33	222	100	11.42
		70.87	171	77	11.42
		82.68	146	63	11.42
	6	66.14	182	82	12.28
		82.68	146	66	12.28
		94.49	128	58	12.28
0.22	4	22.62	744	334	12.28	18.7	20.1	21.4	22.0	23.6	24.9	26.5	27.6	29.3	32.4	33.5	35.3	36.6	38.4	39.7	41.2	43.0
		30.71	572	257	12.28
		37.80	465	209	12.28
		54.33	297	134	12.28
		70.87	248	112	12.28
		99.21	177	80	12.28
		129.92	135	61	12.28
		177.17	99	45	12.28
		214.96	81	41	12.28
		243.31	73	32	12.28
	6	66.14	265	120	14.25
		82.68	212	96	14.25
		94.49	186	84	14.25
Single Phase Motors
0.08	4	0.63	103	65	11.81	18.7	19.4	20.7	21.4	22.9	24.3	26.0	26.9	28.7	31.7	32.9	34.6	35.9	37.7	39.0	40.6	42.6
		2.28	28	18	11.81
0.15	6	0.35	183	116	12.28	18.1	19.8	21.4	22.1	23.6	24.9	26.5	27.6	29.3	32.4	33.5	35.3	36.6	38.4	39.7	41.2	43.0
		0.75	87	55	12.28
