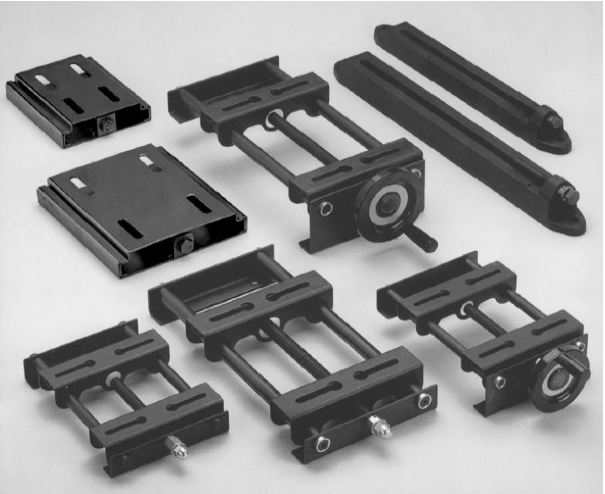

Poggi IEC-Metric Motor Bases
Sliding Metal Baseplates for use with Electric Motors.
  • Four Unique Styles
  • Metric Sizes 56 to 315
  • Fractional to 200hp
  • Sheet Steel & Cast Iron
  • Suitable for Belt Drives
  • Ideal for Alignment
  • Quality Italian Design & Mfg.
  • Rapid Delivery from Stock


SL Available Poggi Metric Baseplates
  SL SLN SLV SG
  Sheet Steel Steel with Rails Inclined Rails Heavy Duty Cast Iron

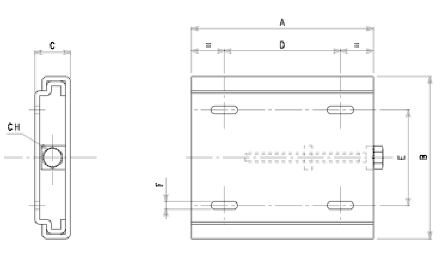

SL -Sheet Steel
SL Baseplate is designed from two sheets of alloy steel, one sliding into the other, with an acme screw to allow linear adjustment.  The SL metric motor base provides a solution to many power transmission positioning problems involving motors, reducers, transmission components where accurate alignment is desired.

The top plate of the SL metric baseplate is designed to allow the customer to drill their own holes in positions found to be ideal to their application.
Code Designation Motor Frame Motor power A B C D E F CH Weight
2 4 mm mm mm mm mm mm mm Kg
3005 SL 5 56 0.09 0.06 180 150 25 100 90 8.5 12 0.91
63 0.25 0.18
71 0.55 0.37
3010 SL10 80 1.10 0.75 200 165 45 100 65 13.0 22 2.21
90 S 1.50 1.10
90 L 2.20 1.50
3015 SL15 100 L 3.00 2.20 250 220 45 150 120 13.0 22 3.49
112 M 5.50 4.00
3025 SL25 132 S 7.50 5.50 280 275 45 180 178 13.0 22 4.58
132 M 9.00 7.50
160 M 15.00 11.00
* When specifying, quoting, or ordering TVT-Poggi Baseplates refer to the Code.


SLN Available Poggi Metric Baseplates
  SL SLN SLV SG
  Sheet Steel Steel with Rails Inclined Rails Heavy Duty Cast Iron

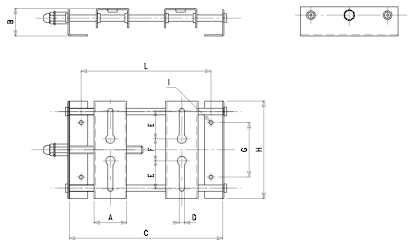

SLN -Sheet Steel Motor Base with Rails
SLN Baseplate is designed with slots to be used with Standard IEC Metric Electric Motors, Reducers, and Motovariators.  The baseplate is made from two feet, two sliding tubular steel rails, and an adjusting screw with locking device to fix the base once in position.

The strong alloy steel is protected from corrosion with an attractive manganese phosphate surface treatment.
Code Designation Motor Frame Motor power A B C D E F G H I L Weight
2 4 mm mm mm mm mm mm mm mm mm mm Kg
30SLN071 SL.NORM.GR. 71 56 0.09 0.06 46 38 220 6.5 40 33 80 140 8.5 187 1.00
63 0.25 0.18
71 0.55 0.37
30SLN090 SL.NORM.GR. 90 80 1.10 0.75 47 49 245 8.5 52 39 95 175 8.5 214 2.60
   90 S 1.50 1.10
  90 L 2.20 1.50
30SLN112 SL.NORM.GR.112 100 L 3.00 2.20 53 61 400 10.5 55 40 120 210 10.5 364 5.50
112 M 5.50 4.00
30SLN160 SL.NORM.GR.160 132 S 7.50 5.50 78 80 490 12.5 76 70 180 310 12.5 446 13.00
132 M 9.00 7.50
160 M 15.00 11.00
* When specifying, quoting, or ordering TVT-Poggi Baseplates refer to the Code.
SLV Available Poggi Metric Baseplates
  SL SLN SLV SG
  Sheet Steel Steel with Rails Inclined Rails Heavy Duty Cast Iron

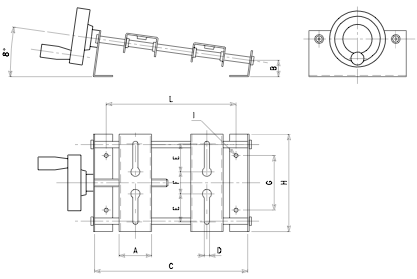

SLV - Inclined Baseplates with Handwheel
SLV Inclined Baseplates with slots are like our SLN series metric motor bases but employ an 8 degree sliding incline.  These have proven ideal for use with variable speed pulley systems requiring precise adjustable center distance control.

When equipped with a handwheel for the adjusting screw it is ideal for drives with use variable pulleys.  It is constructed of high quality sheet steel and protected from corrosion with an attractive manganese phosphate surface treatment.


Code Designation Motor Frame Motor power A B C D E F G H I L Weight
2 4 mm mm mm mm mm mm mm mm mm mm Kg
30SLV071 SL.VOL.GR. 71 56 0.09 0.06 46 22 220 6.5 40 33 80 140 8.5 187 1.18
63 0.25 0.18
71 0.55 0.37
30SLV090 SL.VOL.GR. 90 80 1.10 0.75 47 22 245 8.5 52 39 95 175 8.5 214 2.60
   90 S 1.50 1.10
  90 L 2.20 1.50
30SLV112 SL.VOL.GR.112 100 L 3.00 2.20 53 27 400 10.5 55 40 120 210 10.5 364 5.60
112 M 5.50 4.00
30SLV160 SL.VOL.GR.160 132 S 7.50 5.50 78 34 490 12.5 76 70 180 310 12.5 446 14.49
132 M 9.00 7.50
160 M 15.00 11.00
* When specifying, quoting, or ordering TVT-Poggi Baseplates refer to the Code.
SG Available Poggi Metric Baseplates
  SL SLN SLV SG
  Sheet Steel Steel with Rails Inclined Rails Heavy Duty Cast Iron

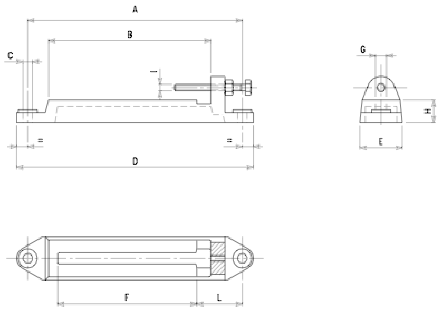

SG - Motor Slide Rails in Cast-Iron
SG Cast Iron Heavy Duty Metric Motor Mounting Rails are designed to accurately and securely adjust and align IEC Metric Motors and Gear Reducers to 200hp.

TVT-Poggi Metric Slide Rails are constructed of Engineering Grade Cast Iron, Precision Machined, and Finished for an attractive appearance and corrosion resistance.

Code Designation Motor Frame Motor power A B C D E F G H I L Weight
2 4 mm mm mm mm mm mm mm mm mm mm Kg
271 SG1 90 S 1.50 1.10 340 275 11 375 52 240 12 27 M10 66 1.93
90 L 2.20 1.50
272 SG2 100 L 3.00 2.20 410 340 13 450 60 300 12 33 M10 68 2.80
112 M 5.50 4.00
273 SG3 132 S 7.50 5.50 470 395 13 510 60 350 14 35 M10 75 3.32
132 M 9.00 7.50
274 SG4 160 M 15.00 11.00 595 515 16 635 60 465 14 48 M14 83 5.40
180 L 25.00 22.00
275 SG5 200 L 37.00 30.00 700 610 16 745 77 550 18 50 M14 95 7.50
225 M 45.00 45.00
276 SG6 250 M 55.00 55.00 830 740 20 880 98 670 23 63 M16 97 12.40
280 M 90.00 90.00
277 SG7 315 S 110.00 110.00 950 850 2- 1000 105 780 23 70 M16 105 18.20
315 M 132.00 132.00
* When specifying, quoting, or ordering TVT-Poggi Baseplates refer to the Code.

Click Catalog Selection for PDF

   Poggi Metric Motor Base Documentation
