BERGES Drive Controls
  • Adjusting Control Mounted on Drive Pulley
  • No Axial Load Applied to Motor Bearings
  • Optional Indicator Hand Wheels
  • Genuine Berges Quality & Design.
  • Suitable for Forward & Reversing operations.
  • V Manual Standard Controls & HS Hydraulic Remote Controls
  • Easily Control Speed of motors up to 160Kw.
s s s s

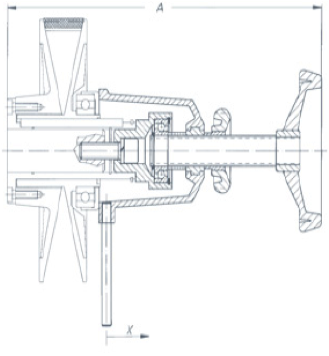

SV Controls
Pulley Control Adjustment X A (mm)
105.13 SV1 - 10.2 236
100 & 100b 15.9 16.1 228
130b 17.9 - 228
127.17 SV2 - 13.4 262
150 & 150b 21.9 24.7 272
190b 24.1 - 272
196b 27.0 - 292
210 & 210b 30.6 37.5 304
235b 31.5 - 304
250b SV3 36.9 - 356
280 & 280b 44.0 - 373
300b 40.4 - 396
350b 51.7 - 406

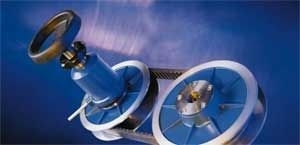

TVT America offers the full range of genuine Berges Variable Speed Belt Drives made in Germany.  The SV, ZV, and HS Controls from Berges are conveniently mounted on the drive pulley, and have proven to provide years of trouble free, maintenance free operation.

Click Catalog Selection for PDF

   Berges Controls Documentation
