Berges RF..b Adjustable Pulley

BERGES RF..b Pulley/Belt Drives

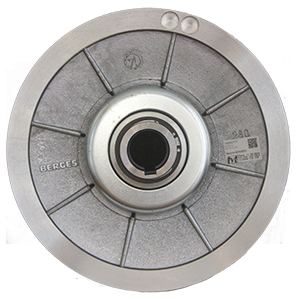

			front of F...b	side of F...b

Symmetrical Pulleys for wide V-Belts

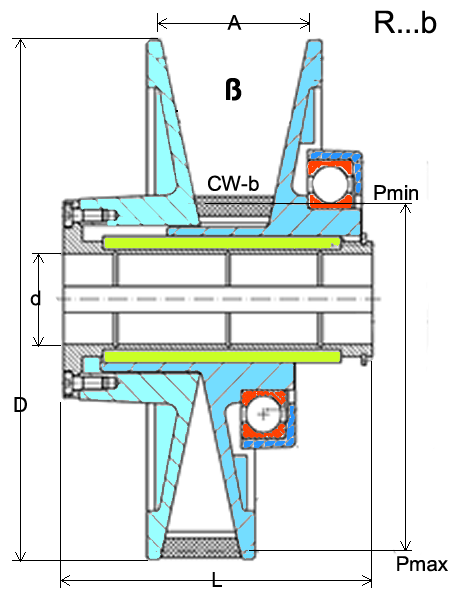

R..b Adjusting Variable Pulley on driving shaft.

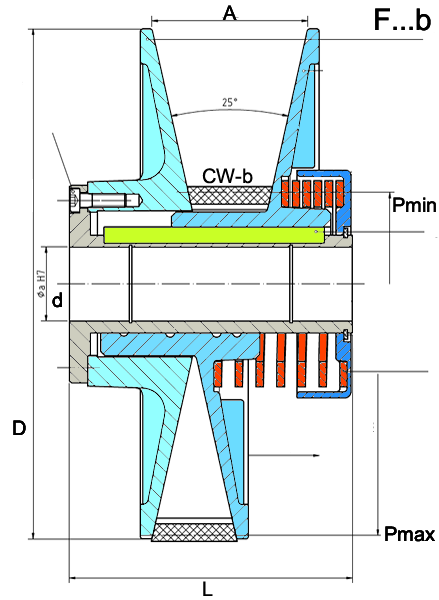

F..b Tensioning Pulley on driven shaft*
Constant distance between shafts & Constant Tension.
Wide Speed Range - to 10.5~1 variable.
Suitable for Forward & Reversing operations.
Power range from 1/2hp (0.37kw) to 225hp (160kw).


To price or purchase click link for pulley ship today.				To purchase Belt or Pulley Click link to select, price, purchase, and ship today!
Model	Bore Dia. d	D	L	Model	Bore Dia. d	D1	L	Belts for pulleys RF..b
R80b	11mm	91.4	50	F80b	11mm	91.4	50	CW-b17x6
	14mm				14mm
R100b	14mm	120	72	F100b	14mm	120	72	CW-b22x7
	0.625"				0.625"
	19mm				19mm
	0.875"				0.875"
	24mm				24mm
R130b	14mm	135	72	F130b	14mm	135	72	CW-b22x7
	0.625"				0.625"
	19mm				19mm
	0.875"				0.875"
	24mm				24mm
R150b	19mm	159	90	F150b	19mm	159	90	CW-b28x8
	0.875"				0.875"
	24mm				24mm
	1.125"				1.125"
	28mm				28mm
R190b	19mm	190	90	F190b	19mm	190	90	CW-b28x8
	0.875"				0.875"
	24mm				24mm
	1.125"				1.125"
	28mm				28mm
R196b	19mm	191	110	F196b	19mm	191	110	CW-b33x10
	0.875"				0.875"
	24mm				24mm
	1.125"				1.125"
	28mm				28mm
R210b	24mm	220	122	F210b	24mm	220	122	CW-b37x10
	28mm				28mm
	38mm				38mm
R235b	24mm	236	145	F235b	24mm	236	145	CW-b37x10
	28mm				28mm
	38mm				38mm
R250b	28mm	255	162	F250b	28mm	255	162	CW-b47x12
	38mm				38mm
	42mm				42mm
R280b	28mm	296	162	F280b	28mm	296	162	CW-b55x15
	38mm				38mm
	42mm				42mm
R300b	38mm	305	185	F300b	38mm	305	185	CW-b51x16
	42mm				42mm
	48mm				48mm
R350b	38mm	346	195	F350b	38mm	346	195	CW-b 70x18
	42mm				42mm
	48mm				48mm
R375b	48mm	346	220	F375b	48mm	346	220	CW-b83x23
	55mm				55mm
	60mm				60mm
R400b	55mm	372	220	F400b	55mm	372	220	CW-b83x23
	60mm				60mm
	65mm				65mm
R450b	60mm	450	280	F450b	60mm	450	280	contact TVT for selection
	65mm				65mm
	70mm				70mm
R500b	60mm	470	280	F500b	60mm	470	280	contact TVT for selection
	65mm				65mm
	70mm				70mm
R600b	75mm	506	360	F600b	75mm	506	360	contact TVT for selection
	80mm				80mm
	90mm				90mm
* * * NOTE - Berges Belts length is the diameter of as measured from the INSIDE of the belt * * *
