a |
 |
Berges F190b-28 |
Belts for RF190b Pulleys |
||
|
Uses CW-B 28mm belts see Berges Belts Page for our range of in stock sizes
|
||||
| Control Pulley | ||||
| Berges Part # 140000xxx | ||||
| D | 190mm | |||
| d | 28mm (H7) | |||
| L | 90mm | |||
| CW-b | 28mm | BELTS> | ||
| Pmin | 0.8 | |||
| Pmax | 2.7 | |||
| Weight | 1.3kg / 2.6lbs | |||
| Mfg | Germany, Berges A.G. | |||
| HS | 8425.11.0000 | |||
| Power | 3kw (4hp) | |||
| Speed | 5000 rpm | |||
| Variation | RF190b 9/1 | |||
| Output Speeds | Base/4.5 to 4.5 x Base | |||
| PDF Spec Sheet: F190b-28.pdf | ||||
| Online Price: $536 | ||||

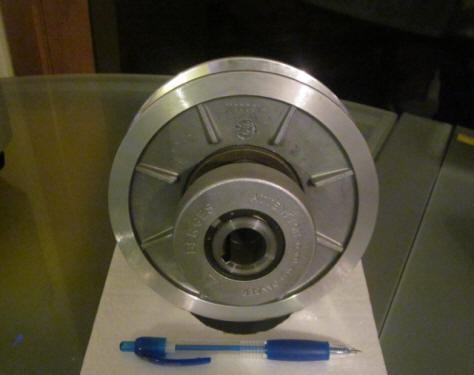

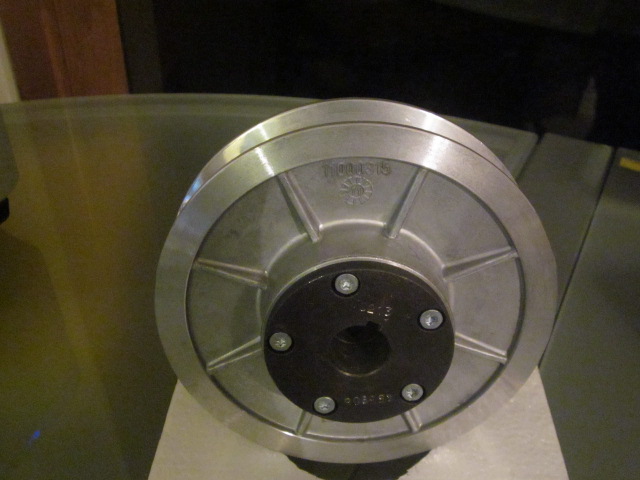

| Front | Side | Back | ||
 |
 |
 |
||
